PET release film for die cutting is commonly used as a stable carrier liner that supports adhesive materials during cutting, slitting, waste removal, laminating, and part transfer. In die cutting and kiss cutting applications, the release film is not only a temporary backing. It directly affects cutting accuracy, peeling behavior, waste matrix removal, adhesive cleanliness, and production efficiency.
For converters working with adhesive tapes, labels, protective films, foam parts, electronic components, medical dressings, insulation materials, and precision die-cut parts, the liner must stay flat and release consistently. If the release film curls, stretches, tears, or peels too tightly, the final part may deform or fail during assembly.
PET release film is widely used in these applications because it offers good dimensional stability, mechanical strength, smooth surface quality, and controlled release performance. Compared with some paper liners or softer plastic films, PET can provide better support for precision converting processes where small tolerance differences matter.
YingFei provides release film materials for industrial adhesive, converting, and die-cutting applications. This guide explains how PET release film works in die cutting and kiss cutting, what specifications matter most, and how buyers can choose a suitable release liner for stable production.

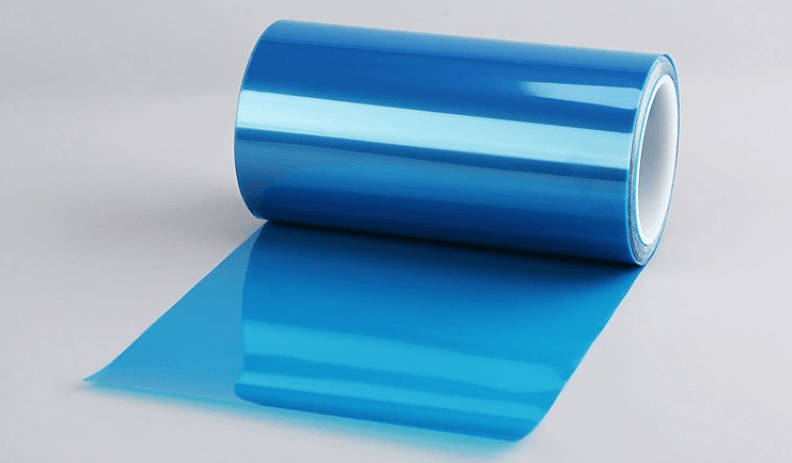

What Is PET Release Film for Die Cutting?
PET release film is a polyester film substrate coated with a release layer, commonly silicone-based, to allow controlled separation from adhesive or sticky materials. In die cutting, the film usually acts as a carrier liner, protective liner, or process liner.
In many converting processes, adhesive material is laminated onto the PET release liner before cutting. The die then cuts the adhesive, foam, film, tape, or label material into the required shape. Depending on the process, the die may cut through all layers or only through the top material while leaving the liner intact.
The main job of PET release film in die cutting is to hold the adhesive material firmly enough during processing while still allowing clean release when the finished part is removed.
This balance is important. If release force is too low, the adhesive may lift from the liner during slitting or waste removal. If release force is too high, the part may stretch, deform, or leave residue when peeled.
Die Cutting vs Kiss Cutting: Why the Liner Requirement Is Different
Die cutting and kiss cutting are related processes, but they place different demands on the release liner.
| Process | Cutting Method | Liner Role | Main Release Film Requirement |
| Die Cutting | The die may cut through one or multiple layers, sometimes through the liner depending on part design | Supports the material during full cutting and part separation | Strength, flatness, clean cutting support, dimensional stability |
| Kiss Cutting | The die cuts only the top material and adhesive layer while keeping the liner uncut or lightly marked | Acts as a carrier base for the finished parts | Stable thickness, cutting depth control, surface consistency, release force stability |
| Rotary Die Cutting | Continuous cutting on a roll-to-roll line | Supports high-speed converting and waste matrix removal | Tension resistance, roll flatness, consistent coating |
| Flatbed Die Cutting | Sheet or roll material is cut by press movement | Supports accurate shape formation | Film stiffness, surface flatness, low deformation |
| Laser Cutting | Material is cut by laser energy | May support parts during non-contact cutting | Heat tolerance, surface cleanliness, adhesive compatibility |
For kiss cutting, the liner is especially important because it functions as the base layer that should remain intact. If the release liner thickness is inconsistent, the cutting depth may become unstable. If the liner surface is too soft or uneven, the die may cut too deeply in some areas and too shallowly in others.
In kiss cutting, liner thickness consistency and surface stability help control cutting depth and reduce the risk of liner damage.
Why PET Film Is Commonly Used in Die Cutting Applications
PET is not the only release liner material, but it is commonly selected when converting accuracy, dimensional stability, and clean release are important.
1. Good Flatness for Accurate Cutting
Flatness is critical in die cutting. A liner that curls, wrinkles, or waves can cause misalignment, uneven pressure, poor cutting depth, and unstable part shape.
PET film usually provides good flatness and stiffness compared with softer films. This helps the material stay stable under machine tension, pressure, and winding conditions. For narrow parts, small adhesive gaskets, electronic pads, or precision labels, a flat carrier liner can improve cutting consistency.
2. Dimensional Stability Under Tension
Roll-to-roll converting lines apply tension during unwinding, laminating, cutting, waste removal, and rewinding. If the liner stretches too much, the adhesive material may shift, and the final part size may change.
PET release film has good dimensional stability in many converting applications. It can help reduce deformation during die cutting and kiss cutting, especially when the parts require tight positioning.
3. Controlled Release Force
Release force affects nearly every step of die-cutting production. During cutting, the adhesive must remain attached to the liner. During waste removal, the unwanted matrix must peel away smoothly. During final assembly, the finished part must release without distortion.
A suitable PET release liner can be designed with different release levels to match the adhesive system and processing method.
Common release options may include:
| Release Level | Typical Use | Possible Risk If Incorrect |
| Light Release | Easy-peel adhesive parts, transfer applications, low-tack adhesives | May cause lifting during die cutting if too light |
| Medium Release | General adhesive tapes, labels, foam parts, protective films | Usually balanced, but still needs adhesive testing |
| Heavy Release | High-tack adhesives, small parts, difficult matrix removal conditions | May make final peeling harder if too tight |
| Differential Release | Double-sided liners with different release values on each side | Requires careful orientation control during production |
The right release force is not always the lowest release force; it is the release force that keeps the material stable during converting and easy to remove during final use.
4. Smooth Surface for Adhesive Contact
A smooth PET film surface can help maintain adhesive layer uniformity. This is useful for thin adhesive tapes, optical materials, electronic parts, and medical adhesive components where surface marks or contamination may affect performance.
Compared with paper-based liners, PET film is also less likely to introduce paper fibers. For applications that require cleaner converted parts, this can be an important advantage.
5. Mechanical Strength for Slitting and Waste Removal
Die-cutting lines often include slitting, rewinding, matrix stripping, and part transfer. PET release film offers good tensile strength and tear resistance for many roll-to-roll converting processes.
When the liner is too weak, it may break under tension or during matrix removal. When the liner is too flexible, it may deform and affect the cutting result. PET provides a useful balance of strength and process stability.
Key Requirements for PET Release Film in Die Cutting
Buyers should evaluate PET release film based on process performance, not only material name. The following requirements are especially important for die cutting and kiss cutting.
| Requirement | Why It Matters | What Buyers Should Check |
| Flatness | Affects cutting accuracy and lamination quality | Roll curl, wrinkles, waves, edge quality |
| Thickness Consistency | Critical for kiss cutting depth control | Nominal thickness, tolerance, uniformity |
| Release Force | Controls peeling, lifting, and matrix removal | Light, medium, heavy, or differential release |
| Coating Uniformity | Prevents unstable peeling and adhesive residue | Silicone coating consistency, cured surface |
| Tensile Strength | Supports high-speed converting | Web tension, slitting, rewinding stability |
| Surface Cleanliness | Important for electronics, medical, and optical parts | Particles, gels, scratches, fibers |
| Heat Resistance | Needed for some lamination or drying processes | Process temperature and exposure time |
| Roll Quality | Affects machine operation | Roll tightness, telescoping, edge alignment |
| Static Control | Helps with dust and part handling | Anti-static requirement if needed |
| Adhesive Compatibility | Prevents residue or transfer issues | Test with actual adhesive system |
How Release Force Affects Die Cutting and Kiss Cutting Quality
Release force is one of the most important specifications for die cutting release film. It determines how easily the adhesive separates from the liner.
If release force is too low:
- The adhesive may lift during cutting.
- Small parts may move or shift.
- Waste matrix removal may pull finished parts away.
- Roll handling may become unstable.
- Parts may transfer unintentionally.
If release force is too high:
- Finished parts may stretch during peeling.
- Thin adhesive layers may deform.
- Manual assembly may slow down.
- Adhesive may remain on the liner.
- Small parts may be damaged during removal.
For kiss cutting, release force must also work with cutting depth. If the die pressure is correct but release force is mismatched, the operator may still see lifting, tearing, or poor part separation.
A good kiss cutting release liner should support clean cutting, stable waste removal, and smooth peeling without causing adhesive distortion.
PET Release Film vs Release Paper for Die Cutting
Both release film and release paper can be used for die-cutting applications. The right choice depends on the product type, converting process, cleanliness requirement, and budget.
| Factor | PET Release Film | Release Paper |
| Dimensional Stability | Usually strong in precision converting | Can be affected by moisture and paper structure |
| Surface Smoothness | Smooth film surface | Depends on paper type and coating |
| Cleanliness | No paper fibers, suitable for cleaner applications | May have fiber or dust concerns |
| Thickness Consistency | Good for kiss cutting depth control | Can vary depending on paper grade |
| Stiffness | Available in different thicknesses | Often naturally stiff |
| Cost | Often higher than basic paper liners | Usually cost-effective for general applications |
| Typical Applications | Electronics, medical tapes, optical films, precision die-cut parts | Labels, general adhesive tapes, packaging, industrial backing |
For simple labels or low-cost adhesive products, release paper may be sufficient. For cleaner, thinner, or more precise die-cut parts, PET release film is often a better fit.
PET Release Film vs PE Release Film for Kiss Cutting
PE release film may be useful for soft, flexible applications. However, PET is often selected when the process requires better stiffness, dimensional stability, and temperature resistance.
| Factor | PET Release Film | PE Release Film |
| Stiffness | Higher stiffness, better support | Softer and more flexible |
| Dimensional Stability | Better in many precision applications | More likely to stretch under tension |
| Heat Resistance | Better than PE in many converting processes | More limited under heat |
| Surface Smoothness | Good for precision adhesive layers | Can be suitable, but depends on grade |
| Kiss Cutting Support | Good for depth control and part stability | May be suitable for flexible parts |
| Common Use | Precision die-cutting, electronics, medical, optical, tapes | Protective films, flexible adhesive products, general backing |
The choice should be based on the adhesive, machine conditions, part size, and end-use requirements rather than material preference alone.
Common Die-Cutting Problems Related to Release Film
1. Finished Parts Lift During Waste Removal
This often happens when release force is too low, adhesive tack is too high, or the waste matrix removal angle is not suitable. A slightly higher release force or adjusted matrix stripping setup may improve stability.
2. Adhesive Residue Remains on the Liner
Residue may be caused by poor release coating compatibility, insufficient coating quality, excessive pressure, or adhesive migration. Buyers should test the liner with the actual adhesive system before production.
3. Liner Is Cut Through During Kiss Cutting
This may result from incorrect die pressure, inconsistent liner thickness, overly soft substrate, or poor machine control. PET film with stable thickness can help improve kiss-cutting consistency, but die setup still matters.
4. Parts Deform During Peeling
If release force is too high, the adhesive or die-cut material may stretch during removal. This is especially common with thin films, soft foam, or small adhesive parts.
5. Curling or Wrinkling During Lamination
Curling may be caused by film tension imbalance, roll storage conditions, coating stress, or mismatch between liner and adhesive material. Film flatness and roll quality should be checked before high-volume converting.
6. Static Attracts Dust or Small Parts
Static can cause dust contamination or make small parts difficult to handle. For sensitive applications, anti-static treatment or process control may be needed.
How to Choose PET Release Film for Die Cutting and Kiss Cutting
Step 1: Confirm the Die-Cut Product Structure
Before choosing a liner, define what will be cut. Is it a double-sided adhesive tape, foam tape, protective film, electronic pad, medical tape, label, gasket, or insulation material? Different structures require different liner stiffness and release behavior.
Step 2: Identify the Adhesive Type
Acrylic, rubber, silicone, hot melt, and pressure-sensitive adhesives may interact differently with the same release coating. The supplier should know the adhesive type and tack level before recommending a release force.
Step 3: Decide Whether You Need Single-Side or Double-Side Release
Single-sided PET release film is common when only one adhesive surface contacts the liner. Double-sided release film may be required when both surfaces need release control or when the liner is used in multi-layer lamination.
Step 4: Select the Right Thickness
Thickness affects stiffness, die-cutting support, cost, and kiss-cutting depth control. Thicker PET may offer better handling and stiffness, while thinner PET may be chosen for flexible or cost-sensitive applications.
The correct thickness should be tested based on:
- Part size
- Die type
- Cutting pressure
- Roll width
- Machine speed
- Lamination structure
- Final peeling method
Step 5: Test Release Force Under Real Conditions
Lab data is useful, but actual production testing is more important. Buyers should test the PET release film with the actual adhesive, die, machine speed, temperature, and storage time.
Step 6: Evaluate Roll and Slitting Quality
For roll-to-roll die cutting, roll quality affects machine stability. Check whether the liner unwinds smoothly, whether edges are clean, and whether the roll shows telescoping, wrinkles, or blocking.
YingFei’s release film materials can be evaluated based on thickness, release side, release force, roll width, and converting requirements.
Buying Checklist for PET Release Film
Before requesting a quote, buyers should prepare a clear technical request. This helps the supplier recommend a suitable product and reduces trial-and-error costs.
| Information to Provide | Example or Notes |
| Application | Die-cut tape, kiss-cut label, foam gasket, electronic pad |
| Adhesive Type | Acrylic, rubber, silicone, hot melt, PSA |
| Cutting Process | Flatbed die cutting, rotary die cutting, kiss cutting, laser cutting |
| Film Thickness | Required or target thickness |
| Release Side | Single-sided, double-sided, differential release |
| Release Force | Light, medium, heavy, or tested value if available |
| Roll Width and Length | Slitting width, core size, roll diameter |
| Process Temperature | Lamination or drying temperature if involved |
| Cleanliness Requirement | General industrial, electronics, medical, optical |
| Main Problem to Solve | Lifting, residue, difficult peeling, curl, liner cutting |
| Sample Testing Plan | Machine condition and adhesive structure |
When buyers communicate these details early, it becomes easier to match PET release film with the actual converting process.
How to Select a PET Release Film Supplier
A reliable supplier should understand not only film materials, but also converting behavior. For die cutting and kiss cutting, the supplier should be able to discuss release force, coating side, thickness, roll format, adhesive compatibility, and sample testing.
Important supplier capabilities include:
- Stable PET film substrate sourcing
- Consistent release coating
- Custom slitting width support
- Clear roll packaging and protection
- Sample supply for adhesive testing
- Understanding of die-cutting and kiss-cutting requirements
- Ability to support different release force levels
- Communication about common converting issues
For buyers looking for industrial release materials, YingFei provides PET release film options for adhesive, tape, label, protective film, and precision converting applications. You can also visit the YingFei official website to review related release liner materials and company information.
FAQ
1. What is PET release film used for in die cutting?
PET release film is used as a carrier liner or protective liner during die cutting. It supports adhesive materials, helps maintain part shape, enables waste removal, and allows the finished part to peel from the liner when needed.
2. Why is PET release liner suitable for kiss cutting applications?
PET release liner is suitable for kiss cutting because it offers good flatness, thickness consistency, and dimensional stability. These properties help control cutting depth and reduce the risk of cutting through the liner.
3. What release force is suitable for die cutting release film?
The suitable release force depends on the adhesive type, part size, cutting process, and waste removal method. Light release may help easy peeling, while medium or heavy release may be needed to prevent lifting during converting.
4. How do I choose PET release film for adhesive die-cut parts?
You should confirm adhesive type, film thickness, release side, release force, cutting method, roll width, cleanliness requirement, and process temperature. Sample testing under real production conditions is recommended before bulk orders.
5. What causes adhesive parts to lift during kiss cutting?
Part lifting may be caused by release force that is too low, high adhesive tack, poor waste removal angle, unstable die pressure, or insufficient liner flatness. Adjusting liner release force and machine setup can help improve stability.
6. Is PET release film better than release paper for precision die cutting?
PET release film is often preferred for precision die cutting because it offers better dimensional stability, smoother surface, and cleaner performance than many paper liners. However, release paper may still be suitable for general labels or lower-cost applications.
7. Can PET release film be used for rotary die cutting?
Yes, PET release film can be used for rotary die cutting when the film has suitable tensile strength, release force, thickness, and roll quality. It is commonly used in roll-to-roll converting for tapes, labels, protective films, and precision parts.
Conclusion
PET release film plays an important role in die cutting and kiss cutting applications. It supports the adhesive material, helps control cutting accuracy, improves waste removal, and allows clean release during final use. For precision converting, the liner’s flatness, thickness consistency, release force, coating quality, and roll stability can directly affect production quality.
The right PET release film should be selected based on the adhesive system, cutting process, part size, release requirement, and machine conditions. Buyers should avoid choosing only by price or material name. Instead, they should test the liner under actual production conditions and confirm key specifications before bulk purchasing.If you are sourcing PET release film for adhesive die-cut parts, kiss-cut labels, foam tapes, electronic components, or protective film converting, YingFei can help review your application requirements and provide suitable release film solutions for sample testing and production use.
